Understanding and Restoring Concrete Voids and Cracks
Concrete provides high compressive strength and design flexibility, yet it can deteriorate due to structural movement, overloading, and environmental exposures. Water infiltration, chemical attacks, and freeze-thaw cycles initiate cracks in concrete, accelerate degradation, and reduce the service life of the concrete substrate.
These mechanisms reduce load-bearing capacity and frequently result in concrete voids or an uneven concrete floor, which present trip-and-fall hazards within both industrial and domestic facilities.
One of the most effective methods for restoring damaged concrete is using epoxy concrete repair compounds. Unlike traditional cement patches, epoxy-based repair materials form a strong chemical bond to existing concrete, creating a long-lasting and durable fix.
Belzona Concrete Repair for Concrete Voids

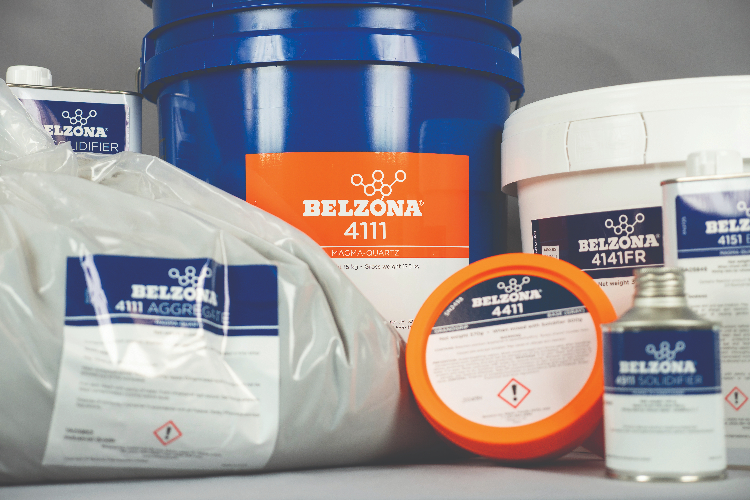

Belzona 4000 Series comprises high-performance epoxy concrete repair materials designed for rebuilding and resurfacing concrete and stonework. These materials are based on epoxy resins and selected quartz particles, providing superior solutions for concrete defects, including voids under concrete slabs, uneven concrete floors, or cracks in concrete.
Here are some of the most common Belzona products to repair uneven concrete floors or voids in concrete:
| Product Name | Suitability |
| Belzona 4111 (Magma-Quartz) | High-strength rebuilding system using epoxy resin and quartz particles. Ideal for patching voids, repairing heavy-wear areas, and structural bonding |
| Belzona 4131 (Magma-Screed) | Resurfacing material for screeding large areas subject to mechanical and chemical damage |
| Belzona 4181 (AHR Magma-Quartz) | Acid- and heat-resistant epoxy system for aggressive environments |
| Belzona 4141 (Magma-Build) | Lightweight epoxy material for rebuilding overhead/vertical concrete and stonework |
| Belzona 4154 (Bulkfill Resin)* | For filling large concrete voids when combined with aggregates |
* Only available in the USA
Step-by-Step Guide for Concrete Void Repair Using Epoxy Concrete Repair Compound
Step 1 – Prepare the Surface before Applying the Concrete Repair Product
Use a brush or vacuum to remove all loose material or contamination to expose a fresh, sound concrete surface. If required, wash old concrete down with detergent to remove oil, grease, and dust. Then, use clean water to wash away the detergent and allow the surface to dry.
Step 2 – Use Conditioner before Applying Concrete Resurfacing Materials
Add the entire content of Belzona 4911 (Magma TX Conditioner) Solidifier to Belzona 4911 Base. For mixing small quantities of Belzona 4911 (Magma TX Conditioner), use 2 parts Base : 1 part Solidifier by volume.

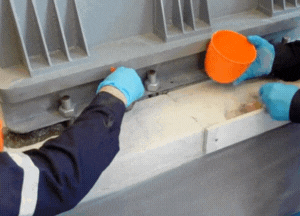

Step 3 – Apply Conditioner on Concrete Floor Surface
Use a brush to apply Belzona 4911 (magma TX Conditioner) on the voids or cracks in concrete. The conditioner will allow for the optimum adhesion of Belzona epoxy concrete repair materials.
Step 4 – Combine Belzona 4151 (Magma-Quartz Resins) Base and Solidifier
Belzona 4111 (Magma-Quartz) comes as a three-part system including Belzona 4151 (Magma-Quartz Resins) Base, Belzona 4151 (Magma-Quartz Resins) Solidifier, and Aggregates. Start by mixing the Belzona 4151 (Magma-Quartz Resins) Base and Solidifier first (2:1 by volume or 2.3:1 by weight). Belzona recommends strictly following manufacturer’s Instruction for Use.
Step 5 – Introduce Belzona 4111 (Magma-Quartz) Aggregates
Add Belzona 4111 (Magma-Quartz) Aggregates to the mixed resin and mix until the desired consistency is achieved. When mixing large quantities, it is recommended to use a mechanical mixer.
Step 6 – Fill Void in Concrete with the Mixed Material
If necessary, use formwork to create a smooth edge for the concrete repair. Then, insert the mixed material into the cracks or voids using the Belzona spatula.

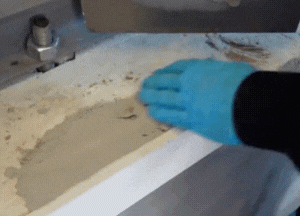

Step 7 – Smooth the Concrete Repair
Use a steel float to level off the product, removing entrapped air and ensuring the maximum contact between the surface of the repair area and the Belzona epoxy concrete repair material.

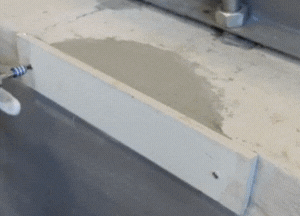

Step 8 – Allow the Product to Cure
After the product fully cures, remove the formwork. Cure time depends on the temperature and the working conditions that the concrete will face. The manufacturer’s Instructions for Use detail the completion of the molecular reaction.
Video: Four Ways to Repair Concrete with Belzona 4111 (Magma-Quartz)
Frequently Asked Questions
What is the best repair method for voids in concrete?
Asset owners can use cementitious mortar for traditional repair. However, epoxy concrete repair materials offer superior performance, particularly in curing time and durability. Conventional cementitious mortars typically require up to 28 days to achieve full cure, whereas epoxy-based systems can reach full strength within a few days. Additionally, epoxy-based concrete repair compounds offer excellent adhesion to various substrates and form an impermeable barrier that prevents water ingress, thereby ensuring the long-term protection of the repaired area.
How do Belzona epoxy concrete systems provide solutions to fill voids in concrete and fix concrete cracks?
Belzona epoxy concrete repair systems use a two-part epoxy resin combined with selected quartz aggregates to fill voids, fix concrete cracks, and bond damaged concrete sections. Once cured, the material forms a strong, durable, and chemically resistant bond with the existing substrate. Epoxy repair systems offer several advantages over traditional mortar repair:
- Superior adhesion: Bonds chemically to the substrate for long-term durability.
- High strength: Resists heavy loads, vibration, and impact.
- Chemical resistance: Withstands oil, grease, acids, and other contaminants.
- Versatility: Users can apply epoxy concrete systems on floors, drains, walls, and overhead areas.
Can epoxy concrete repair materials be used to address voids and cracks in outdoor concrete?
Yes, Belzona 4111 (Magma-Quartz) is a versatile, multi-purpose epoxy repair composite designed for the resurfacing, rebuilding, and protection of concrete and stone surfaces. Asset owners can use it in a wide range of environments, including outdoor areas, for repairing cracks in concrete driveways, as well as on loading docks, aisles, steps, walkways, and chemical storage areas.
Where can I purchase Belzona epoxy concrete repair system?
Belzona 4000 Series, epoxy concrete repair systems, is available worldwide through a network of over 150 Authorized Distributors in over 120 countries. In addition to local availability of high-performance composite repair materials and protective coatings, Belzona Authorized Distributors also provide technical expertise and application support to ensure the proper selection and use of Belzona products. To locate your nearest Distributor or obtain further assistance with concrete repair solutions, visit the Belzona Distributor Finder on the official Belzona website.
