This is a transcript of the Belzona “Solve it Session” webinar conducted on 27th March, 2018. You can watch the webinar recording here:

Belzona Solve It Session: Concrete Solutions from Floor to Ceiling

Problems which can affect concrete

The first point to discuss is the damage mechanisms we find throughout industry with concrete. It Is a widely used material, which has many applications.

Under a compressive load, concrete is one of the best building materials around. However, this does not mean it is completely invulnerable to damage. Much like the deterioration of steel through rusting, moisture has many detrimental effects on concrete.

Freeze Thaw

This is where the moisture inside concrete freezes and expands, causing a big issue. The cyclic loading caused by the constant expansion and contraction can break the concrete down, eventually resulting in failure.

Concrete Solutions from Floor to Ceiling

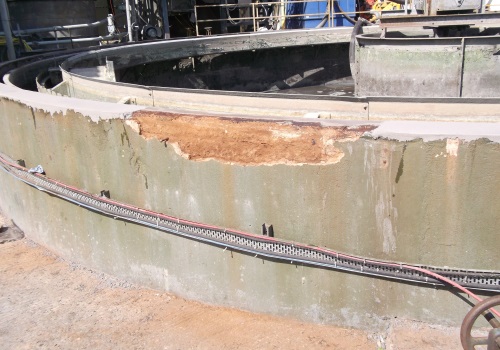

Freeze thaw damage to a effluent tank

Shrinkage

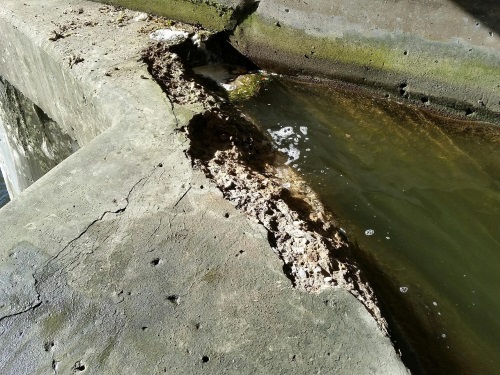

Another type of damage which is incredibly common is spalling/cracking of the substrate. This can be caused by numerous factors, but the main reason is almost always moisture. How many times have you been inside a structure made of concrete, and not seen ANY cracking or damage at all?

Unfortunately, it is a bit of a paradox. Moisture is required in order for concrete to cure correctly; there is an excess available within newly laid concrete. But it is also the main reason it fails! Too little moisture can cause it to dry out. Just the right amount can cause carbonation to occur.

Concrete Solutions from Floor to Ceiling

Carbonation

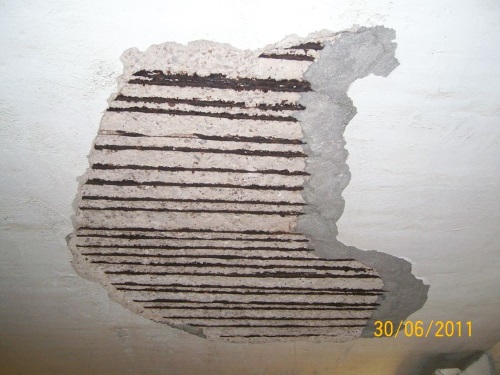

Carbonation is a major issue as it is not as easy to predict as other types of damage. We need a few things for carbonation to take place – moisture, CO2 and porosity. With these, the concrete breaks down over time, eventually causing it to fall away from the surface.

Concrete Solutions from Floor to Ceiling

Abrasion

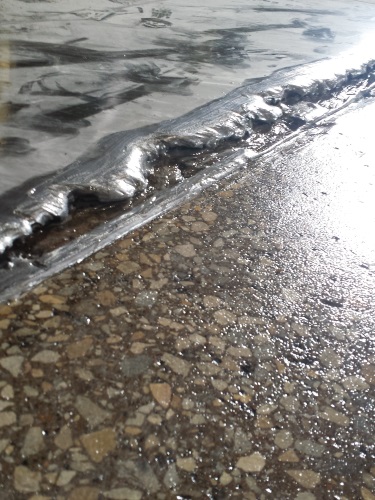

Abrasion is a major issue in areas which involve heavy machinery or transport. The heavy-duty materials used, and repeated contact causes concrete to wear over time. This allows moisture to penetrate the surface, leading to some of the above problems.

Concrete Solutions from Floor to Ceiling

Chemical Attack

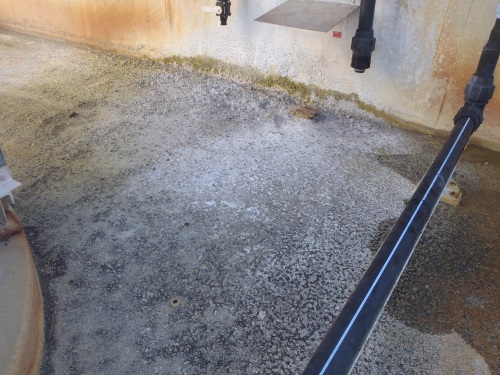

As concrete is alkaline by nature, a change in the pH can play havoc with the binders contained within the material. This disrupts the mechanical properties of the product, ultimately leading to failure over time as these properties become reduced.

Concrete Solutions from Floor to Ceiling

Impact

Concrete is known for its fantastic compressive strength. It can hold tremendous weight over a large area without any mechanical failure. The problem comes when this force, which is normally spread over a sizeable area, becomes concentrated. This is caused by impact. The force can be enough to fracture the concrete, or in most cases, damage it on a structural level. Much like abrasion, this can be a repeating process.

What’s the Solution?

Like-for-like concrete repairs are often favoured. But these can struggle to adhere to the existing substrate. Besides, what’s to stop the same damage from happening again?

Belzona has created a range of 100% solids epoxies for mortar repairs as an alternative to traditional rebuilding. These epoxies are designed to restore concrete structures, protecting them and prolonging their lifetimes. And rather than trying to individually solve every one of the above issues, Belzona have created a just handful of versatile systems, which can be used to treat an infinite amount of problems.

Belzona 4181 – Acid-and-Heat-Resistant Resurfacing and Protection Screed
Belzona 4181 – Acid-and-Heat-Resistant Resurfacing and Protection Screed
Belzona 4111 - High Performance Concrete Repair and Rebuild Composite
Belzona 4111 - High Performance Concrete Repair and Rebuild Composite
Belzona 4131 – High Performance Resurfacing and Protecting Screed
Belzona 4131 – High Performance Resurfacing and Protecting Screed
Belzona 4141 – Lightweight Rebuild System for Vertical and Overhead Surfaces
Belzona 4141 – Lightweight Rebuild System for Vertical and Overhead Surfaces
Belzona 4154 – Resin material to be mixed with aggregate to fill large voids
Belzona 4154 – Resin material to be mixed with aggregate to fill large voids
Belzona 4300 Series – A range of chemical and acid resistant coatings
Belzona 4300 Series – A range of chemical and acid resistant coatings

Comparison to Concrete

But how do these materials compare to like-for-like concrete repairs itself? To test this, Belzona has created the following video:

For more Belzona videos – check out the BelzonaTV YouTube channel

Real World Examples

As well as our video, we also have a lot of real world examples of areas where Belzona was used to repair damaged concrete. Belzona has over 500 case studies where our 100% Solids Epoxies and coatings were used on concrete.

An independent online case study library – industsolutions.com – found Belzona to be the fourth largest provider of case studies in the world. This is how dedicated Belzona is to sharing information about their applications.

Concrete Solutions from Floor to Ceiling

Visit khia.belzona.com for our full range of 1500+ case studies

Now we’re going to examine four case studies which really highlight some of the features from the above “Belzona vs. Concrete – Put It to the Test” video.

Case Study 1 – Damaged Concrete Flooring – Long Term Durability

This case study is a very good example of the type of damage found all over the world – large, industrial areas which are built primarily out of concrete.

This concrete is actually 40 years old, inside of a freezer in a meat factory. If left untreated, this could cause significant problems for them in the future. For repairing it, the customer faced a few issues:

  1. They required 24/7 forklift access to the area
  2. There were multiple locations across the factory which required treatment
  3. They only had 3 days to complete the application

The issue with using concrete in this case would be down to the cure time – up to 28 days in order to achieve a full mechanical cure. Obviously, this would have meant they were out of the 3-day window given by the customer.

Therefore, the fast-curing Belzona materials chosen were:

  • Belzona 4154 resins + aggregate to bulk fill
  • Belzona 4111 overlay for optimal properties – compressive, tensile, impact and general chemical resistance
Damaged area before repairs
Damaged area before repairs
Surface prepared prior to repair
Surface prepared prior to repair
Belzona 4154 + aggregate added
Belzona 4154 + aggregate added
Repair overcoated with Belzona 4111
Repair overcoated with Belzona 4111

This application required little in the way of roughening, as the surface had an adequate roughness to accept the Belzona materials. This means that there was no requirement for heavy preparation equipment, eliminating HAV values which are normally an issue when roughening a concrete surface.

Case Study 2 – Chemical Containment Area – Excellent Chemical Resistance

An SX/EW plant (solvent extraction and electrowinning) is part of the process involving the leaching of copper ore heaps through the use of dilute sulphuric acid. This is then taken away to the SX/EW reactor via a drainage system. The solution contains lots of impure copper (anode), so cathodes are used in the process (pure copper) in order to attract the copper ions via electrolysis.

The problem with this is:

  1. There are chemicals involved, and
  2. The solution is not cold – it was almost 50°C (122°F) in this job

The tanks were leaking as a result of continuous use and concrete breakdown, and the rails which held the cathodes in place began to fail due to the heat transfer through the cathode itself.

Now, it seems like quite a complicated issue. Fortunately, the repair was simple.

Belzona 4111 was applied to rebuild the concrete and restore it to its original profile. This then allowed Belzona 4341 (designed for hot, inorganic acids) to protect the surface from further damage. This allowed the cells to continue in use for many years to come, and the success of this application was all down the surface preparation.

Damaged containment area
Damaged containment area
Walls rebuilt with Belzona 4111
Walls rebuilt with Belzona 4111
Completed application
Completed application
Completed application
Completed application

Case Study 3 – Balconies – Excellent Adhesion

At a church property, a balcony was seeing cracks due to its natural movement over time. These cracks were allowing water to seep into the substrate. Originally, the client tried to repair the balconies with a sand and cement mixture. However, the adhesion of these materials was simply not good enough, and they failed.

The client wanted a solution which would be long-term and cost-effective, so turned to Belzona. For this application, the screed solution was specified. Belzona 4131. This was because of its outstanding adhesion and ability to feather edge. This was used to repair the cracks.

Then, to fully waterproof the balcony, Belzona 5811 was coated on top. This also left an aesthetically pleasing finish on the balcony.

Cracked area beforehand
Cracked area beforehand
A close up of the cracks
A close up of the cracks
Repaired with Belzona 4131
Repaired with Belzona 4131
Coated with Belzona 5811
Coated with Belzona 5811

Case Study 4 – Walls and Ceilings – Lightweight Properties

The final case study highlights Belzona materials’ lightweight properties wherein the chosen system was Belzona 4141. It can repair vertical damage of up to 127 millimetres and overhead damage up to 76 millimetres, with minimal or no former usage.

These properties made Belzona 4141 an ideal solution for this case study at a severely damaged office building, where hundreds of repairs were needed. At the office, literal chunks of concrete were falling down from the façade, making it a massive health and safety risk. A full repair was necessary, which Belzona was able to provide with just the one product.

Over 300 vertical and overhead repairs took place around the building over three months of working weekends only. Then the office was completely restored, with minimal disruption to its everyday operation. A final reason Belzona 4141 was chosen was because it can be tinted. In this instance, the red tint ensured the system blended in to the office’s façade and these repairs were barely visible.

Office facade falling apart
Office facade falling apart
Damaged overhead concrete
Damaged overhead concrete
Belzona 4141 used for repairs
Belzona 4141 used for repairs
Completed application
Completed application
Completed application
Completed application
Completed application
Completed application

All of the products used within these case studies have their own individual merits, such as the lightweight Belzona 4141, or chemically resistant Belzona 4341. However, there are many features shared by them as well. For example:

  • Most of the products are 2 parts, with easy to follow mixing ratios
  • No volatile components are present
  • Good mechanical strength
  • Magma polymers can be feather edged
  • They are easy to use and quick to cure

Want more information?

Visit our website www.belzona.com/concrete
